4.3. Connections

Connections

Mrs. Krause and the Meistermacher employees are taking a closer look at the connections of the fire walls.

They are climbing into the attic and examine the connection of the fire wall with the building structure. They find out that the fire walls extend right up to the roofing (roof cladding).

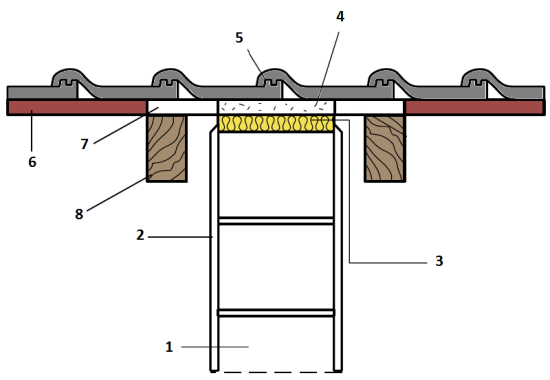

Mrs. Krause has made a small sketch ​(hint: the seals and thermal insulation are not shown).

Skizze des Dachanschlusses

Click on the sketch to enlarge
iDevice Icon Your tasks

Dachanschluss

Exercise 1

Please look at the adjacend sketch.

Rename the individual components (dropdown-list, positions 1 to 8). Then click on the button "submit reply" to check your answers.

Exercise 2

Assess the connection to the roof.

Are the connections to he roof constructed in a way that ensures the building's fire safety?

What alternative constructions are there?

Discuss your answers in your discussions forum (hints), with your colleagues and your faculty.

Pos. 1: Pos. 2:

Pos. 3: Pos. 4:

Pos. 5: Pos. 6:

Pos. 7: Pos. 8:

Submit reply
